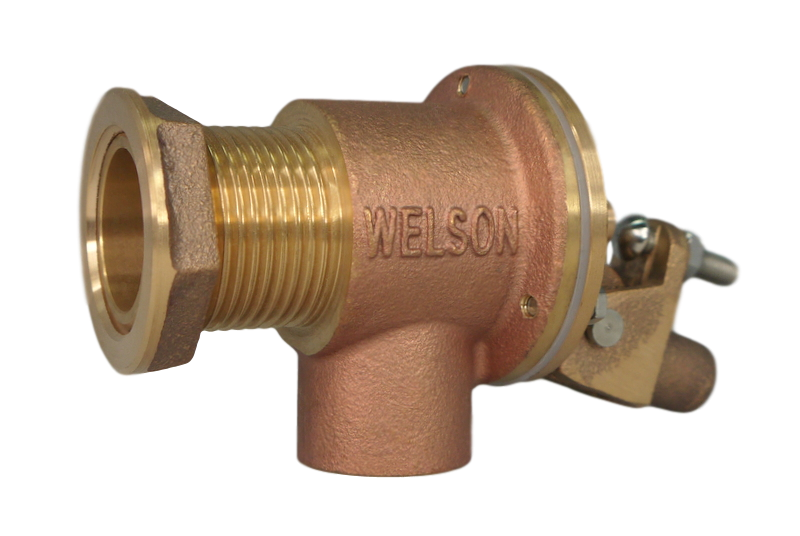

The 2001 float operated valve is for projects that are looking for an economical yet reliable mechanical piston-type float valve.
Its function is to control the flow of liquids for open or closed water tanks, reservoirs, cooling towers, and vats.
These available model sizes are from 3/4″ to 4″ which all are mated to the system by the screws joint inlet.
It is also available in a comprehensive selection of components to match the needs of different applications.
The 2001 float valve requires the least operating areas compare to other models thanks to the compact and simple operating design.
The valves design also incorporates a large valve bore which helps to eliminate jamming or clogging while in operation.
Though the design is of economy and simplicity in mind, the valve is still manufactured to operate with reliability and effectiveness.
Service Medium: Water (Fresh / Seawater)
Working Pressure: 0-16 BAR (Non-Shock at normal atmospheric temperature)
The available sizes for model 2001 float valve are from 3/4″ to 4″.
All valves are manufactured with male BSP screwed joint inlet and selected valves also include a female outlet.
The valve main body, piston, and lever are manufactured from high-quality gunmetal material.
Assembled together by stainless steel parts to enable this valve to have good corrosion-resistant, and provides reliable operation.
Valve Gunmetal Material: BS EN 1982:2008 Grade CC491K
Valve Stainless Steel Component and Parts: As specified to BS EN10088-1: 2014 Grade 1.4301(304) /1.4401 (316)
Ball Float: Spherical Shape. Available material in copper, 316 stainless steel, or HD-PE plastic
Float Lever: Mount to float by penetrating through its inner cross-section and screwed joint to the valve, material in 316 stainless steel.
This valve has been approved by the Hong Kong Water Service Department under its General Acceptance Scheme.
Please contact us for further details.
