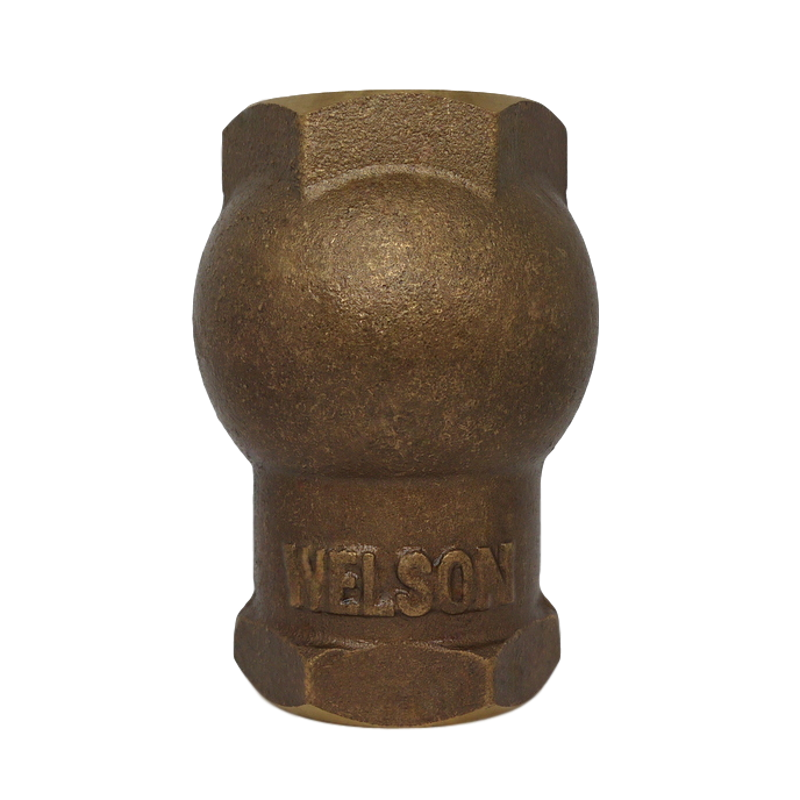

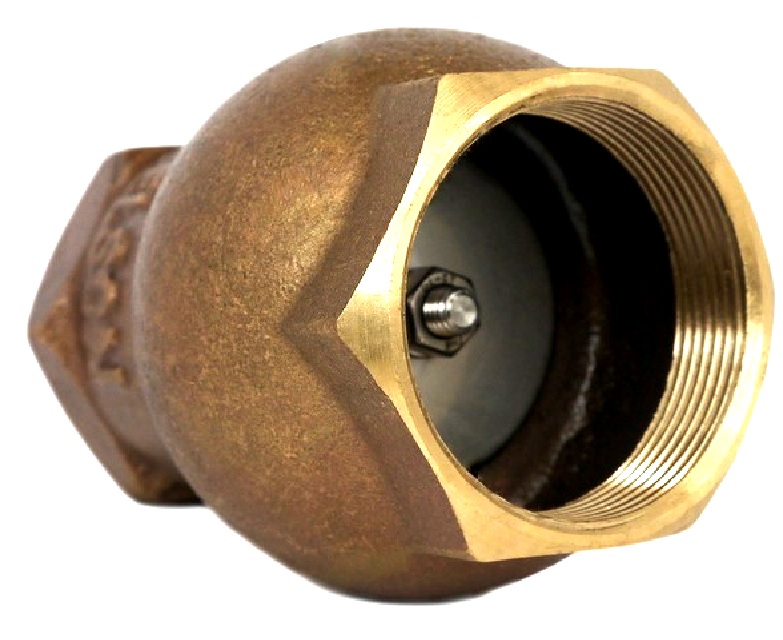

The WELSON model 4002 spring-loaded check valve with a heavy-duty body and high synthetic rubber seals which makes this valve suitable for low-pressure water supply systems in buildings.
This valve requires a low pressure to open and can be installed in both horizontal and vertical lines with upward flow.
The available model sizes are from 1-1/4″ to 4″ which all are mated to the system by the screwed joint inlet.
The 4002 check valve is the traditional non-return valve to be installed in a system where flow in one direction is desired.
The valve design also incorporates a large valve bore which helps to eliminate jamming or clogging while in operation.
The arrow on the side of the valve indicates the flow direction.
Though the valve design is of economy and simplicity in mind, the valve is still manufactured to operate with reliability and effectiveness.
Service Medium: Water (Fresh / Seawater)
Working Pressure: 0-20 BAR (Non-Shock at normal atmospheric temperature)
The available sizes for model 4002 check valve are from 1-1/4″ to 4″.
All valves are manufactured with female BSP screwed joint inlet.
The main heavy-duty body of valve is manufactured from high-quality gunmetal material.
Assembled together by selected gunmetal or stainless steel component to enable this valve to have good corrosion-resistant, and provides reliable operation.
Valve Gunmetal Material: BS EN 1982:2008 Grade CC491K
Valve Component: As specified to BS EN10088-1: 2014 Grade 1.4301(304) or BS EN 1982: 2008 Grade CC491K
This valve has been approved by the Hong Kong Water Service Department under its General Acceptance Scheme.
Please contact us for further details.
