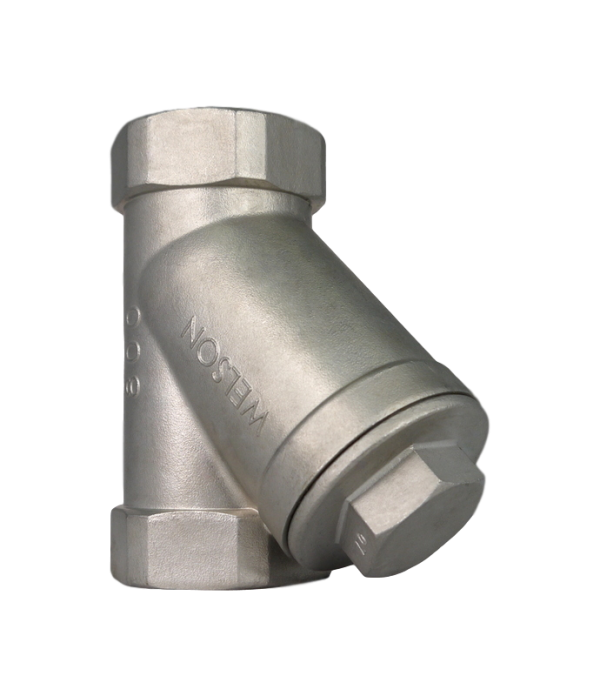

Gr. 316 Stainless Steel Y-type Strainer
The WELSON model SY Gr. 316 stainless steel Y-type strainer is for handling liquid media up to 24 BAR. It features a 1mm or 2mm stainless steel perforated screen to effectively trap and remove suspended debris in pipelines.
The most ideal solution for screening pipelines before a control valve or too stop contaminates spreading further down pipelines and potentially damaging other peripherals.
These available model sizes are from 1/2″ to 3″ which all are mated to the system by the screwed joint inlet.
The SY Y-type screen is compact and easy to install. The stainless-steel perforated screen on a 60-degree angle is effective to trap debris and easy to remove to clean via the top cap.
Service Medium: Water (Fresh / Seawater)
Working Pressure: 0-24 BAR (Non-Shock at normal atmospheric temperature)
The available sizes for model SY Y-type strainer are from 1/2″ to 3″.
All valves are manufactured with female BSP screwed joint inlet.
The main uniform body of valve is casted from Gr. 316 stainless steel material.
Valve Stainless Steel Material: BS EN 10283: 2010 Grade 1.4408 (316) / BS EN 10088-1 Grade 1.4301 (304)
