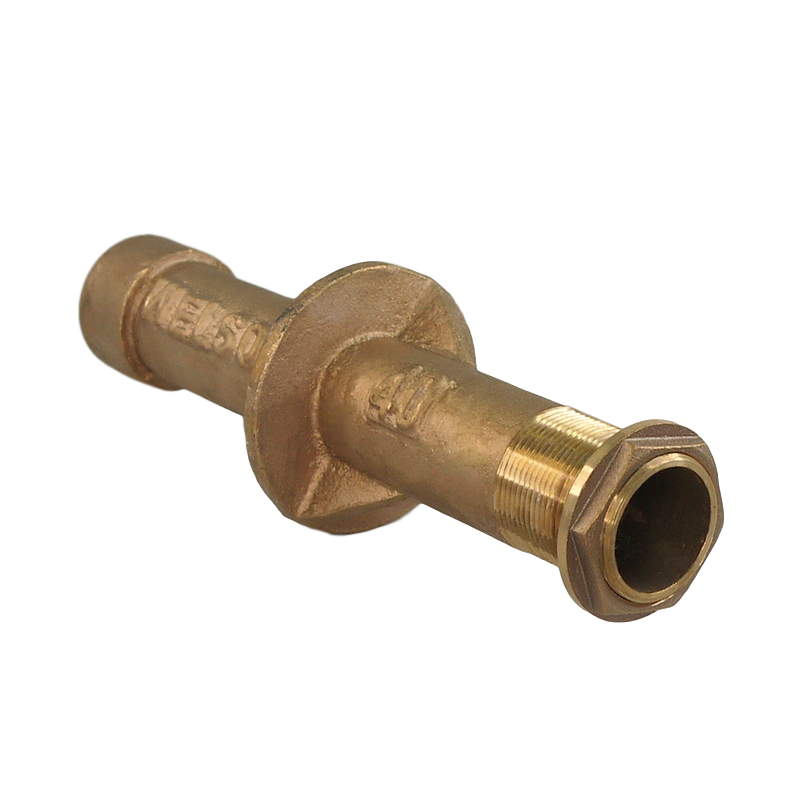

Gunmetal Screwed Ends Pipe Tank Connector
The WELSON series of puddle flanged tank connector has been supplied for plumbing projects for over 25 years.
The GMT model of the gunmetal puddle flanged tank connector is manufactured under stringent quality requirements to material and procedures.
This custom made fitting is the ideal solution to join a pipeline within a building to handling liquid with added protection to stop water running along the outside of the pipe.
Installation of the GMT puddle flanged tank connector is straight forward by the screwed joint ends.
The puddle flange of the connector sits in the center.
It is designed and manufactured to handle heavy-duty purposes.
Service Medium: Water (Fresh / Seawater)
Working Pressure: 0-24 BAR (Non-Shock)
The length and diameter of the tank connector can be made to suit the specifications of the location it is installed at.
The puddle flange can be made to sit closer to either end of the tank connector.
Standard Diameter: 1-1/2″, 2″, 3″, 4″
Standard Length: 300mm, 400mm, 500mm
The tank connector is manufactured with BSP male or female screwed joint ends.
The tank connector is designed with a thick sidewall and it’s a one-piece casted fitting using high-quality gunmetal material.
Fitting Gunmetal Material: BS EN 1982:2008 CC491K
