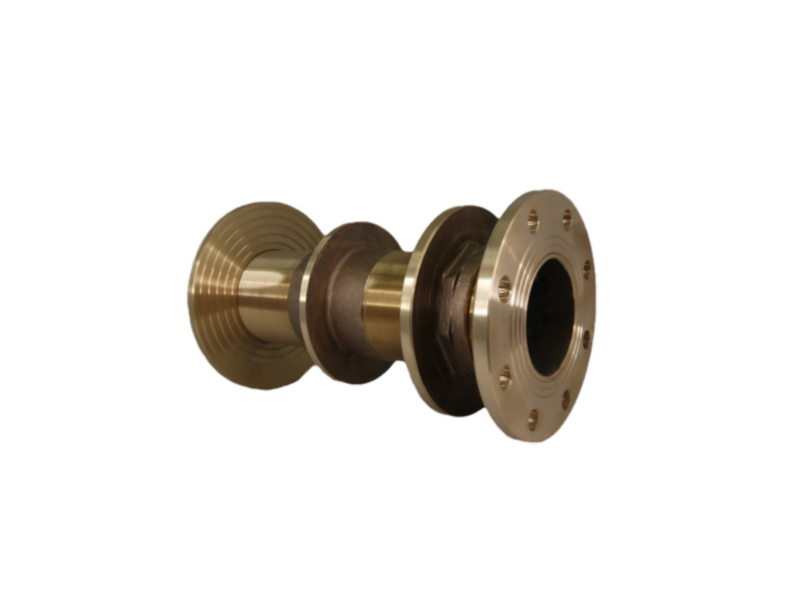

Gunmetal Screwed Ends Pipe Tank Connector with Hex Wall Press Flanges

This tank connector is ideal to use as a temporary fitting in repairing works to the water tank or reservoir sidewalls.

Installation of the GMTM-SP puddle flanged tank connector is straight forward by the screwed joint ends. The puddle flange of the connector sits in the center.

It is designed and manufactured to handle heavy-duty purposes.

Service Medium: Water (Fresh / Seawater )

Working Pressure: 0-24 BAR ( Non-Shock )

The length and diameter of the tank connector can be made to suit the specifications of the location it is installed at.

The puddle flange can be made to sit closer to either end of the tank connector.

Standard Diameter: 2″ to 6″

Standard Length: 200mm – 1400mm

The tank connector is manufactured with BSP male screwed joint ends and selected PN16 flange fittings.

The tank connector is designed with a thick sidewall and it’s a one-piece casted fitting using high-quality gunmetal material.

Fitting Gunmetal Material: BS EN 1982:2008 CC491K
