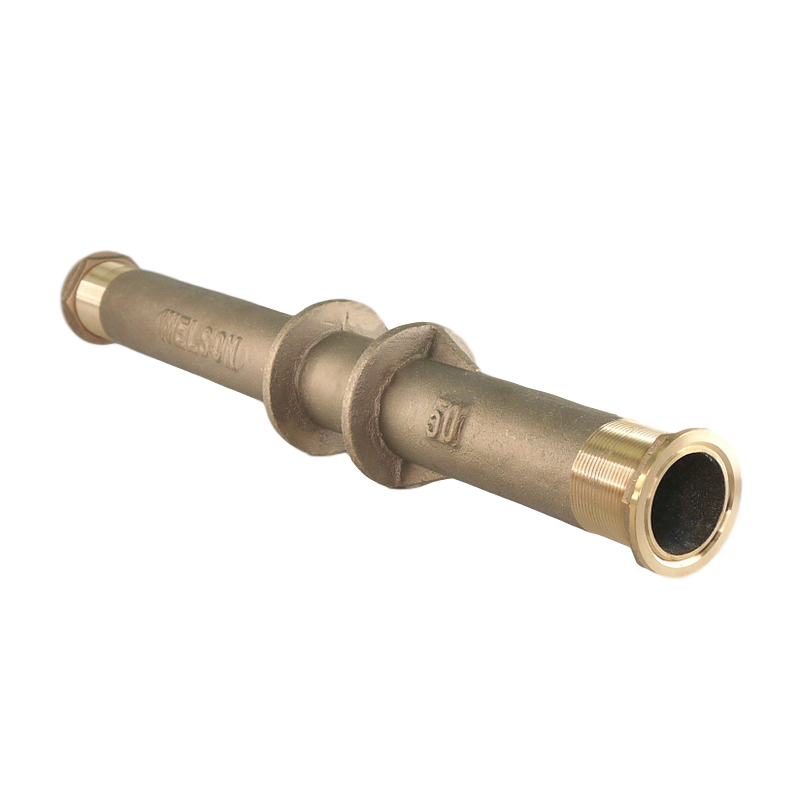

Gunmetal Screwed Ends Pipe Tank Connector with Duo Puddle
The WELSON series of puddle flanged tank connector has been supplied for plumbing projects for over 25 years.
The GMTDP model of gunmetal tank connector with double puddle is manufactured under stringent quality requirements to material and procedures.
This custom made fitting is the ideal solution to join a pipeline within a building to handling liquid with added protection to stop water running along the outside of the pipe.
Installation of the GMTDP puddle flanged tank connector is straight forward by the screwed joint ends.
There are two puddle flanges that sit separated from the center of the connector.
It is designed and manufactured to handle heavy-duty purposes.
Service Medium: Water (Fresh / Seawater)
Working Pressure: 0-24 BAR (Non-Shock)
The length and diameter of the tank connector can be made to suit the specifications of the location it is installed at.
The two puddle flanges are 80mm apart or can be to other requirements.
Standard Diameter: 1″ to 6″
Standard Length: 200mm – 1400mm
The tank connector is manufactured with BSP Male/female screwed joint ends.
The tank connector is designed with a thick sidewall and it’s a one-piece casted fitting using high-quality gunmetal material.
Fitting Gunmetal Material: BS EN 1982:2008 CC491K
