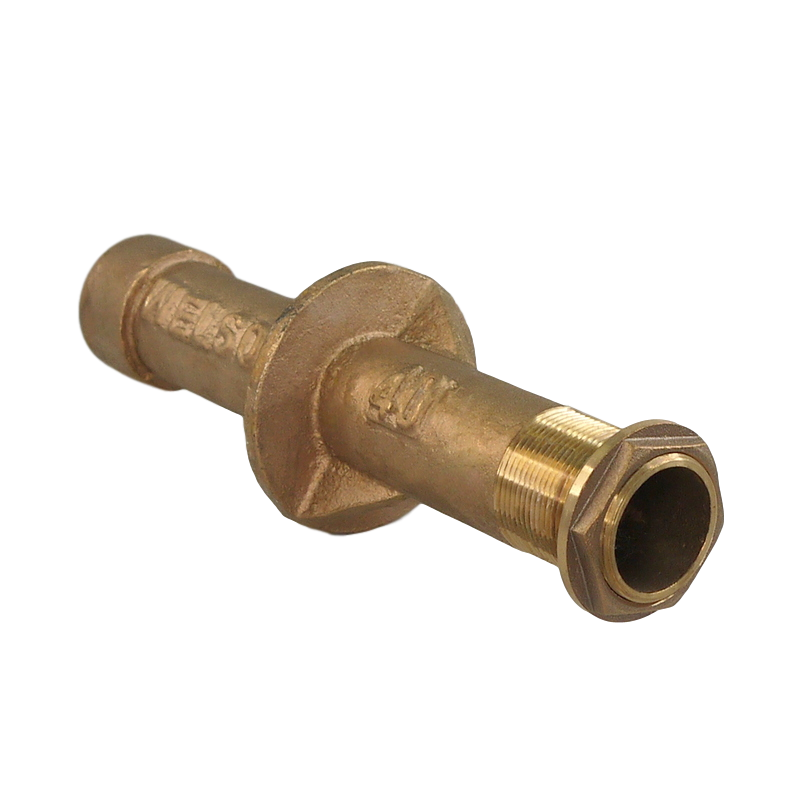

Low-Lead Bronze Screwed Ends Pipe Tank Connector
Welson introduces a new line of low lead content puddle flanged tank connectors for plumbing applications.
The LFT series of bronze puddle flanged tank connector is using bronze material with significantly lower lead content compare to traditional copper alloys like C83600 or CC491K bronze to manufacture.
This custom made fitting is the ideal solution to join a pipeline within a building to handling liquid with added protection to stop water running along the outside of the pipe.
Installation of the LFT puddle flange tank connector is straight forward by the screwed joint ends.
The puddle flange of the connector sits in the center.
It is designed and made to handle heavy-duty purposes
Service Medium: Water (Fresh / Seawater)
Working Pressure: 0-24 BAR (Non-Shock)
The length and diameter of the tank connector can be made to suit the specifications of the location it is installed at.
The puddle flange can be made to sit closer to either end of the tank connector.
Standard Diameter: 1″ to 6″
Standard Length: 200mm – 1400mm
The tank connector is manufactured with BSP Male/female screwed joint ends.
The tank connector is designed with a thick sidewall and it’s a one-piece casted fitting using high-quality low lead content bronze material.
Fitting Bronze Material: ASTM B584-14 C89833
This fitting has been tested to meet the Hong Kong Water Service Department’s general acceptance scheme on the requirement of metal concentration under AS/NZS 4020 specification.
