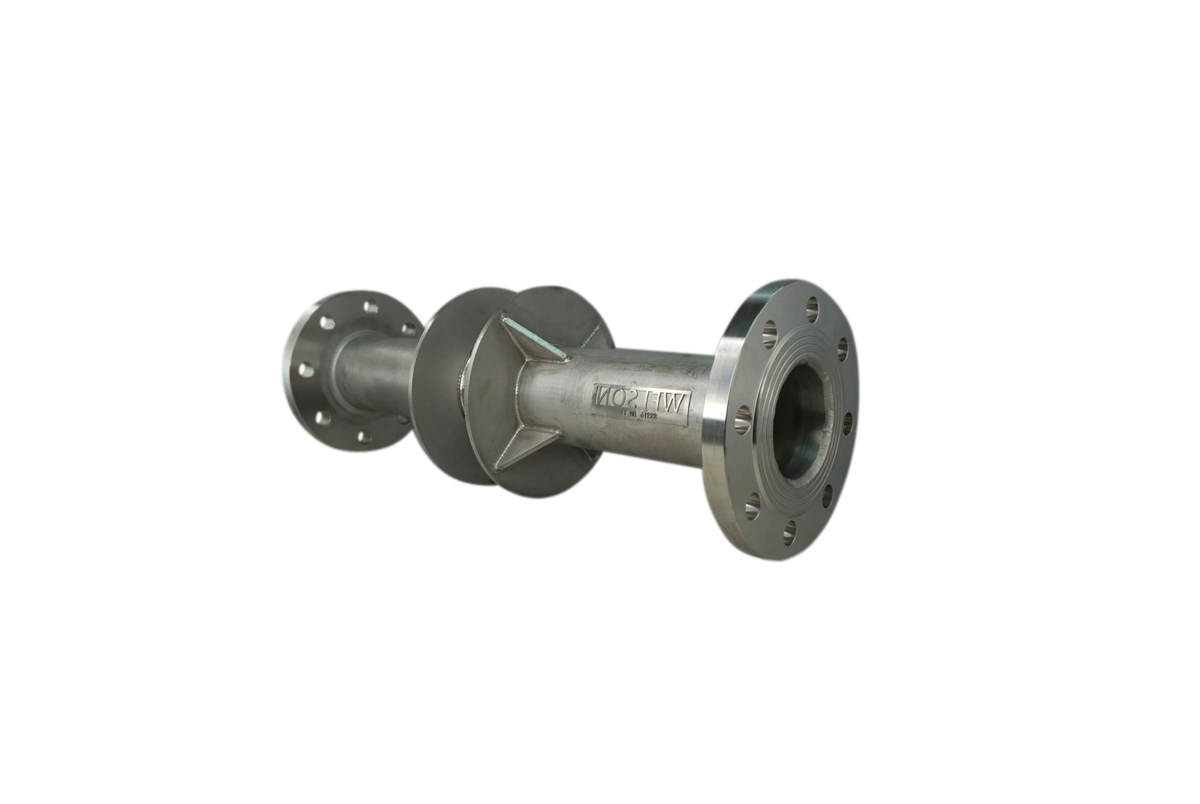

Gr. 316 Stainless Steel Double Flanged Pipe Tank Connector with Duo Puddle
The SST series of stainless steel puddle flanged tank connector was introduced as an additional line of water tank fittings that is backed by over 25 years of experience and expertise in manufacturing puddle flanged tank connectors.
The SSTFDP model of Gr. 316 stainless steel tank connector with double puddle is for projects in need to handle liquid medium while require excellent corrosion-resistant properties with the flexibility of customization to fit its needs.
This fitting is the ideal solution to join a pipeline within a building to handling liquid with added protection to stop water running along the outside of the pipe.
Installation of the SSTFDP puddle flanged tank connector is straight forward by the end PN16 flanges.
There are two puddle flanges which sit separated from the center of the connector.
It is designed and manufactured to handle heavy-duty purposes.
Service Medium: Water (Fresh / Seawater)
Working Pressure: 0-24 BAR (Non-Shock)
The length and diameter of the tank connector can be made to suit the specifications of the location it is installed at.
The puddle flange can be made to sit closer to either end of the tank connector.
Standard Diameter: 3/4″ – 8″
Standard Length: 300mm to 1400mm
The tank connector is manufactured with PN16 flange ends.
The tank connectors are usually fabricated from BS EN 10312 or BS 3605 stainless steel pipe.
WELSON’s fabrication workshop manufactures the tank connector using CNC machines and TIG welding techniques.
Fitting Stainless Steel Material: BS EN 10088-1:2014 Grade 1.4401 (316)
