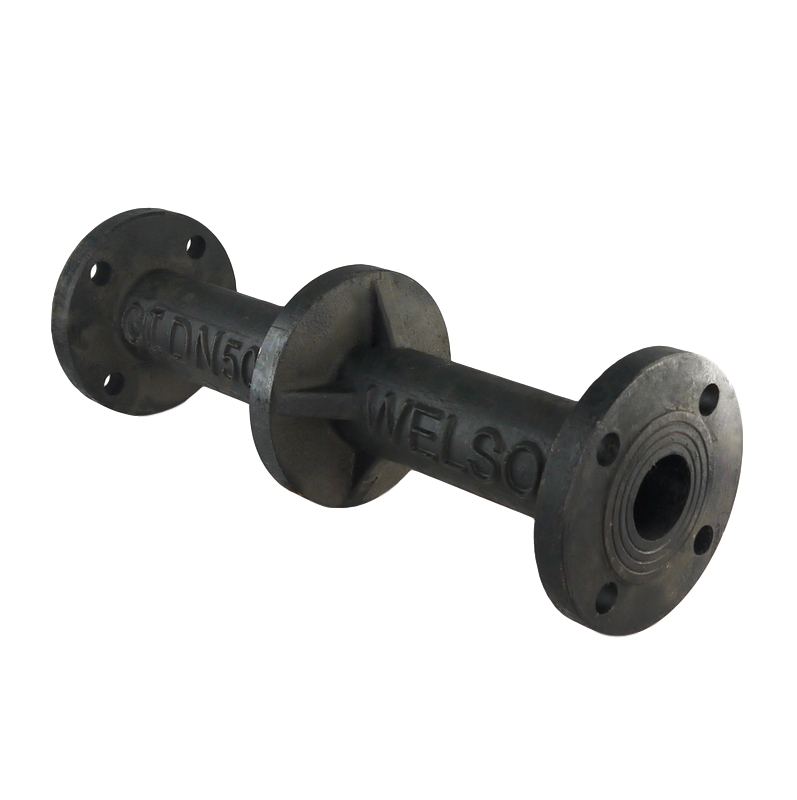

Cast Iron Double Flanged Pipe Tank Connector
WELSON introduces its cast-iron puddle flanged tank connector as a heavy-duty line of water tank fittings for drainage purposes.
The CITF model of epoxy coated casted iron puddle flanged tank connector is for projects in need to handle drainage water in a plumbing system.
This fitting is the ideal solution to join a pipeline within a building to handling liquid with added protection to stop water running along the outside of the pipe.
Installation of the CITF puddle flanged tank connector is straight forward by the end PN16 flanges.
The puddle flange of the connector sits in the center.
It is designed and manufactured to handle heavy-duty purposes.
Service Medium: Water (Fresh / Seawater)
Working Pressure: 0-24 BAR (Non-Shock)
The length and diameter of the tank connector can be supplied to suit specifications of the location it is installed at.
Standard Diameter: 2″ to 12″
Standard Length: 500mm to 1400mm
The tank connector is manufactured with PN16 flange ends.
The entire tank connector is made from grey cast iron material with corrosion-resistant epoxy coating.
Fitting Cast Iron Material: BS EN 1561:2011 Grade EN-GJL-350
