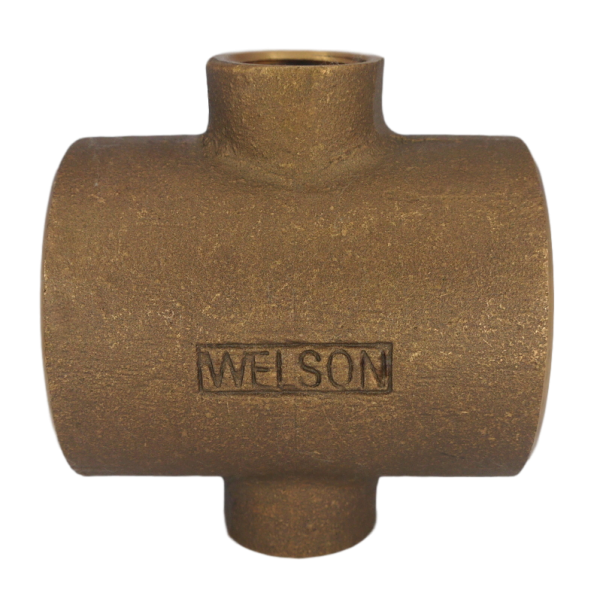

Gunmetal (F) Thread Cross
WELSON range of gunmetal fittings is manufactured to continuously meet the expectations for quality plus reliability for over 30 years.
They are suitable to be installed in tough environments to handle the neutral or light abrasive liquid medium.
The BSF model screwed joint cross are available in sizes from 3/4″ to 2-1/2″.
Service Medium: Water (Fresh / Seawater)
Working Pressure: 0-16 BAR (Non-Shock at normal atmospheric temperature)
The available sizes for BSF model screwed joint cross are 1-1/2″ x 3/4″, 2″ x 3/4″, 2″ x 1″ and 2-1/2″ x 3/4″.
Fitting inlet available in 1-1/2″ to 2-1/2″.
Reducer sizes are 3/4″ or 1″.
All fittings are manufactured with BSP female screwed joint ends.
The main uniform body of fittings is casted from high-quality gunmetal material to BS EN 1982:2008.
